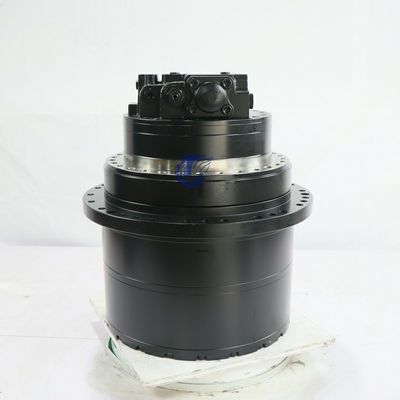

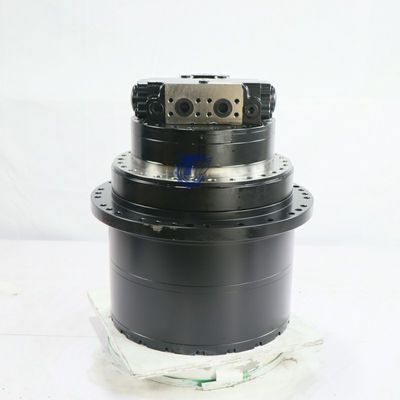

Hitachi ZAXIS 3 Final Drive with High-Torque Propulsion Forged Steel Gearbox Housing and Integrated Parking Brake

The Final Drive Assembly (P/N 9150848, 9214849, 9156041, 9231672) is the high-torque propulsion system engineered specifically for the Hitachi ZAXIS 3 series excavators. Designed for the 27 to 30-ton machine range, this assembly combines a high-displacement axial piston motor with a rugged three-stage planetary gearbox to deliver the massive tractive effort and "straight-line" tracking precision required for large-scale earthmoving, demolition, and infrastructure projects.

Restoring Peak Tractive Effort The Hitachi ZAX270 3 is a powerhouse in its class, frequently utilized in punishing environments like quarries and bulk excavation sites. Its mobility relies on the 9150848 / 9214849 final drive to translate hydraulic pressure into movement. If your machine is "wandering" or struggling to climb steep ramps, your travel motor is likely bypassing pressure internally.

Our premium replacement units are manufactured to handle the high duty cycles of Hitachi machines. Built with induction-hardened gears and high-load bearings, these drives ensure your machine stays synchronized and tracks straight. Replacing a worn-out unit with our precision assembly doesn't just stop a leak; it restores the "factory-fresh" breakout force needed for aggressive digging and heavy material handling.

These Hitachi workhorses are global staples, and our drives are optimized for:

• North America & Europe: Built for the Infrastructure and Heavy Construction sectors. Our drives are fully compatible with high-pressure systems and meet the durability standards required for 24/7 projects.
• Southeast Asia & Oceania: Features reinforced "Mining-Grade" floating seals to prevent the ingress of abrasive volcanic dust, tropical mud, and red clay, which are notorious for destroying standard gearbox seals.
• South America & CIS Regions: Engineered with metallurgical properties that resist structural fatigue in both extreme desert heat and sub-zero mining environments.

• High-Pressure Piston Technology: The internal motor provides smooth 2-speed shifting, allowing for fast site transit and high-torque performance when the terrain gets difficult.
• Forged Steel Gearbox Housing: Unlike standard cast versions, our housings are forged from high-strength alloy steel to prevent structural cracks under the extreme radial loads of a 30-ton machine.
• Integrated Parking Brake: Features a heavy-duty, spring-applied, hydraulic-release braking system for maximum safety on inclines and during transport.
• Direct "Drop-In" Fitment: All hydraulic port locations and sprocket mounting patterns match the original Hitachi specifications for a seamless installation.

• The "Silent Killer" (Case Drain Pressure): Hitachi ZAXIS 3 machines utilize high-flow hydraulics. If your case drain line is even slightly restricted, backpressure will blow the main shaft seal of your new motor. Always replace your case drain filters when installing a new drive.
• Gear Oil Management: Change the planetary gear oil every 500-1,000 operating hours. If the oil appears "milky," water has breached the seals; if it looks "metallic," your gears are spalling. Catch it early to save the gearbox.
• Sprocket Bolt Maintenance: Due to the massive torque of the ZAX280LC 3, sprocket bolts can stretch. Always use new Grade 10.9 or 12.9 bolts and a high-strength thread locker to prevent flange damage.
• System Flushing: If the old motor failed due to internal fragmentation, you must flush the hydraulic tank and lines. Residual shards will destroy a new motor's valve plate in minutes.

Guangzhou Tieqi Construction Machinery Co., Ltd. (IRON CAVALRY) is strategically located in Guangzhou's Huangpu District, approximately an hour from Baiyun International Airport. We have been a dedicated specialist in engineering machinery hydraulics for nearly 15 years.

In China's excavator hydraulic assembly sector, our efficient execution and rigorous approach to manufacturing every product to meet over 95% of original performance specifications have built widespread trust. This has made us a destination for industry peers and clients seeking knowledge and reliable supply.

Our capability is backed by a ready inventory of over 500 assembly types, providing access to more than 6,000 different parts. Hydraulic pump, control valve, travel, and swing assemblies are our core products, with a distinct advantage in large mining excavator components and hard-to-find items.

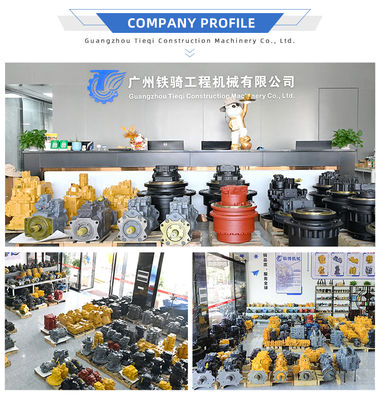

Our 4,000-square-meter factory in Guangzhou is equipped for professional manufacturing, precision assembly, rigorous testing, and quality certification, ensuring reliable performance and timely delivery for every order.

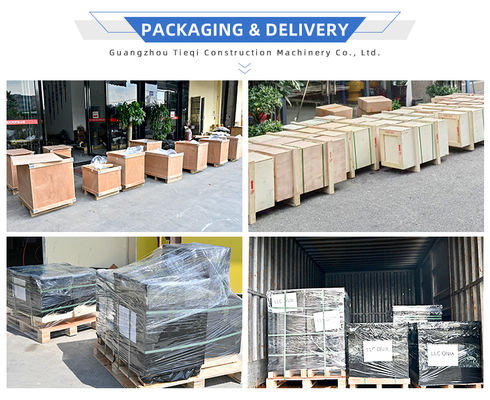

For large items, we use sturdy plywood crates secured with metal fasteners for added stability. Inside, the products are cushioned with bubble wrap and secured with wooden braces, while special attention is given to protecting vulnerable parts. Externally, the crates are reinforced with high-strength PET plastic strapping and wrapped in highly waterproof black film.
