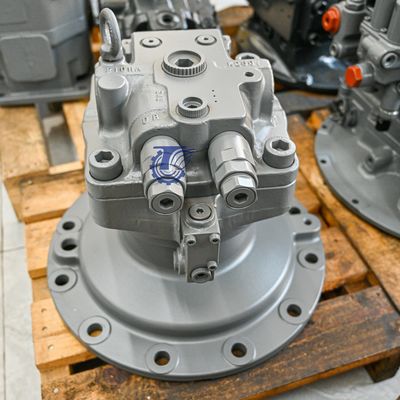

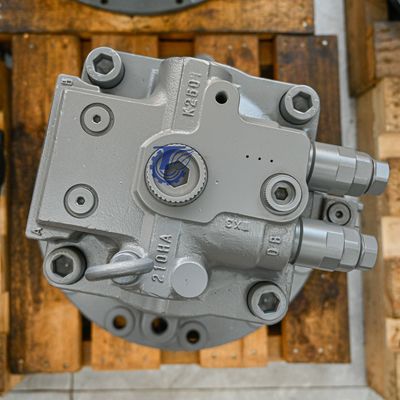

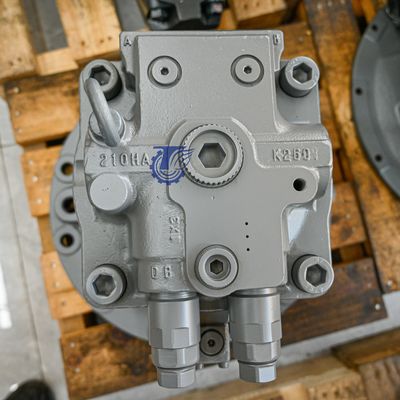

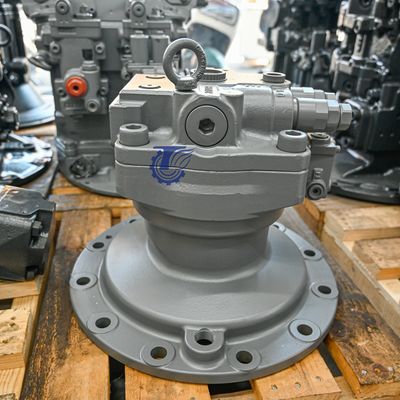

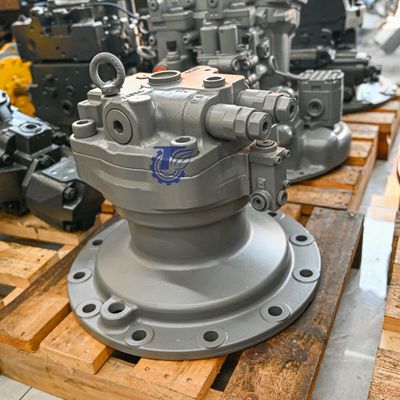

4398514 ヒタチ用のスイングモーター ZX200 ZX200LC ZX210 掘削機 パーツ アフターマーケット オリジナルエネルギー 適用産業
| Place of Origin | China |
|---|---|
| ブランド名 | TQ |
| 証明 | CE,ISO |
| Model Number | 4398514 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX200 ZX200LC ZX210 EXCAVATORS PARTS AFTERMARKET ORIGINAL |
| Minimum Order Quantity | 1 PCS |
| 価格 | Negotiable price |
| パッケージの詳細 | 木製のケースまたは必要に応じて |
| Delivery Time | 5-8 Weekdays |
| Payment Terms | Western Union,T/T |
| Supply Ability | 300pcs /Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x商品の詳細
| 製品名 | 4398514 スウィングモーター/スウィングギアボックス/スウィング減速装置 HITACHI ZX200 | Applicable machine model： | HITACHI ZX200 ZX200LC ZX210 EXCAVATORS |
|---|---|---|---|
| Applicable Industries： | Mechanical repair shops, retail, construction, energy, mining | category | SWING MOTOR |
| Condition | NEW/REBUILT | Brand | TQ |
| ハイライト | ヒタチZX210 スイングモーター,ヒタチZX200LC スイングモーター,ヒタチZX200 スイングモーター |
||
製品の説明
4398514 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX200 ZX200LC ZX210 EXCAVATORS PARTS AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 4398514 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX200 ZX200LC ZX210 EXCAVATORS PARTS AFTERMARKET ORIGINAL | category: SWING MOTOR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Parts on group MOTOR;OIL (SWING): | |||
| Pos. | Part No | Qty | Parts name |
| 4398514 | [1] | MOTOR;OIL | |
| 10 | 788801 | [9] | PISTON ASSY |
| 010A. | +++++++ | [1] | PISTON |
| 010B. | +++++++ | [1] | SHOE |
| 20 | 788802 | [1] | CASING ASSY |
| 020A. | +++++++ | [1] | CASING |
| 020B. | +++++++ | [2] | PIN;SPRING |
| 51 | 4451628 | [2] | VALVE;RELIEF |
| 051A. | A811030 | [2] | O-RING |
| 80 | 788803 | [1] | PLUNGER |
| 101 | 788804 | [1] | SHAFT |
| 111 | 788805 | [1] | CYLINDER |
| 114 | 788806 | [1] | SPRING;PLATE |
| 123 | 788807 | [1] | RETAINER |
| 124 | 788808 | [1] | PLATE |
| 131 | 788809 | [1] | PLATE;VALVE |
| 301 | 788810 | [1] | CASING |
| 351 | 409215 | [2] | PLUNGER |
| 355 | 409216 | [2] | SPRING |
| 390 | +++++++ | [1] | NAME-PLATE |
| 391 | 625509 | [2] | PIN |
| 401 | 365318 | [4] | BOLT;SOCKET |
| 443 | 788811 | [1] | BRG.;ROL. |
| 444 | 788812 | [1] | BRG.;ROL. |
| 467 | 629404 | [2] | PLUG |
| 469 | 692708 | [2] | PLUG |
| 472 | 425115 | [1] | O-RING |
| 487 | 957366 | [2] | O-RING |
| 488 | 4506428 | [2] | O-RING |
| 491 | 788813 | [1] | SEAL;OIL |
| 702 | 788814 | [1] | PISTON |
| 706 | 353321 | [1] | O-RING |
| 707 | 425117 | [1] | O-RING |
| 712 | 788815 | [24] | SPRING;BRAKE |
| 742 | 788816 | [3] | PLATE;FRICTION |
| 743 | 788817 | [4] | PLATE |
| 807 | 788818 | [1] | SPRING |
| 808 | 221509 | [1] | BALL;STEEL |
| 809 | 4506407 | [1] | O-RING |
| 813 | 263019 | [2] | PLUG |
| 982 | 628705 | [2] | PLUG |
| 984 | 694825 | [1] | PLUG |
| 985 | 788819 | [1] | PLUG |
| Parts on group SWING DEVICE: | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2044634 | [1] | SHAFT;PROP. | |
| 2 | 3083742 | [1] | SLEEVE | |
| 3 | A811120 | [1] | O-RING | |
| 4 | 4402481 | [1] | BRG.;ROL. | |
| 5 | 1027617 | [1] | HOUSING | Y 1032876 |
| 5 | 1032876 | [1] | HOUSING | |
| 6 | 4411535 | [1] | SEAL;OIL | |
| 7 | 4402637 | [1] | BRG.;ROL. | |
| 8 | 3086064 | [1] | NUT | |
| 9 | 4411122 | [1] | PLATE;LOCK | |
| 10 | J901020 | [2] | BOLT | |
| 11 | 1026662 | [1] | CARRIER | |
| 12 | 4187590 | [1] | PLATE;THRUST | |
| 13 | 3084729 | [3] | GEAR;PLANETARY | |
| 14 | 4336929 | [6] | PLATE;THRUST | |
| 15 | 4336925 | [3] | PIN | I 4488904 |
| 15 | 4488904 | [3] | PIN | |
| 16 | 4027427 | [3] | PIN;SPRING | |
| 17 | 4427630 | [6] | BRG.;NEEDLE | I 4461644 |
| 17 | 4461644 | [6] | BRG.;NEEDLE | |
| 17 | 4631475 | [6] | BRG.;NEEDLE | I 4461644 |
| 18 | 3080912 | [1] | GEAR;SUN | |
| 20 | 1025957 | [1] | GEAR;RING | |
| 21 | M341645 | [12] | BOLT;SOCKET | |
| 23 | 1025912 | [1] | CARRIER | |
| 24 | 4403371 | [1] | PLATE;THRUST | |
| 25 | 3082517 | [3] | GEAR;PLANETARY | |
| 26 | 4404506 | [3] | BRG.;NEEDLE | |
| 27 | 4403082 | [3] | PLATE;THRUST | |
| 28 | 4336923 | [3] | PIN | |
| 29 | 4051262 | [3] | PIN;SPRING | |
| 30 | 3084056 | [1] | GEAR;SUN | |
| 33 | 3089362 | [1] | PIPE | |
| 35 | 4445352 | [2] | PLUG | |
| 36 | 94-2012 | [1] | PLUG | |
| 61 | 3090308 | [1] | COVER | (for transportation) |
| 62 | J011230 | [4] | BOLT;SEMS | |
| 62 | J271230 | [4] | BOLT;SEMS | T J901230 |
| J222012 (for transportation) | ||||
| 63 | 3053093 | [1] | NAME-PLATE | (for transportation) |
| 64 | M492564 | [2] | SCREW;DRIVE | (for transportation) |
| 100 | 4398514 | [1] | MOTOR;OIL | |
| 101 | 991342 | [1] | RING;RETAINING | |
| 103 | M341228 | [8] | BOLT;SOCKET | I 4614096 |
| 103 | 4614096 | [8] | BOLT;SOCKET | |
| 104 | 4264452 | [1] | PIPE | |
| 105 | 3074223 | [1] | GAUGE;LEVEL | |
| 106 | 4332658 | [1] | PIPE | |
| 107 | 4343365 | [1] | CAP | |
| 109 | 3053093 | [1] | NAME-PLATE | |
| 110 | M492564 | [2] | SCREW;DRIVE | |
| 200 | 9196963 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
